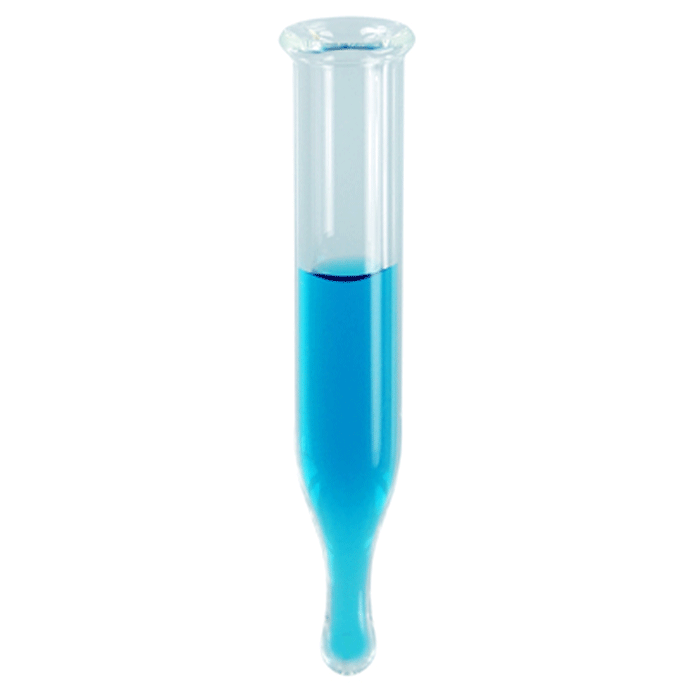

CUSTOM ITEM: Inserts, Low Volume for Vials, Glass. Clear, 250ul fill volume with a conical, precision point and 6x38mm outer dimensions. For use in 4ml autosampler vials. AQ Brand. BULK PRICING.
Additional Info:
Maximize recovery in larger vial formats with precision inserts designed for low‑volume analysis in 4 mL workflows.
9504S‑01N inserts are manufactured from first hydrolytic, Class A, Type 33 borosilicate glass and feature a mandrel‑formed precision conical tip that concentrates sample at the bottom for maximum recovery and consistent needle access. This design provides approximately 250 µL total fill volume with about 150 µL usable volume and a residual volume near 3 µL in most autosamplers.
The extended 6 × 38 mm format is optimized specifically for 4 mL autosampler vials, allowing low‑volume sample analysis without compromising vial compatibility. The precision‑formed tip ensures consistent geometry from insert to insert, improving reproducibility across injections and methods.
Springs may be required depending on the autosampler configuration and are sold separately. When used, springs provide proper centering and alignment within 13 mm screw top 4 mL vials, helping reduce needle misalignment and minimizing the risk of insert damage during operation.
Manufactured in an ISO 9001:2015 certified facility, these inserts ensure reliable dimensional consistency and reproducible analytical performance across batches.
Key Benefits
250 µL fill volume for low‑volume workflows in 4 mL vials
~150 µL usable volume for efficient sample handling
~3 µL residual volume for maximum recovery
Precision conical tip improves injection consistency
Mandrel‑formed tip ensures reproducibility
Type 33 borosilicate glass for chemical durability
Optional spring compatibility for proper centering
Designed specifically for 4 mL autosampler formats
Typical Applications
HPLC and UHPLC analysis
LC‑MS workflows using larger vials
Pharmaceutical and bioanalytical testing
Environmental and chemical analysis
Laboratories requiring low‑volume inserts in 4 mL formats
Compatibility
Designed for 4 mL autosampler vials (15 × 45 mm)
Compatible with 13 mm screw top vials
Springs may be required depending on autosampler design
Performance and Design Notes
Precision tip improves recovery compared to flat designs
Extended length optimized for deeper 4 mL vial geometry
Springs enhance alignment and injection reliability when used
Consistent insert geometry supports reproducible workflows
Important Notes
Springs are not included and may be required
Designed for low‑volume analysis within larger vial formats
Provides improved recovery compared to flat bottom alternatives
