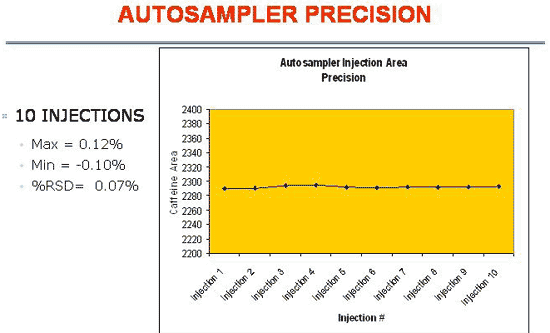

Autosampler Precison

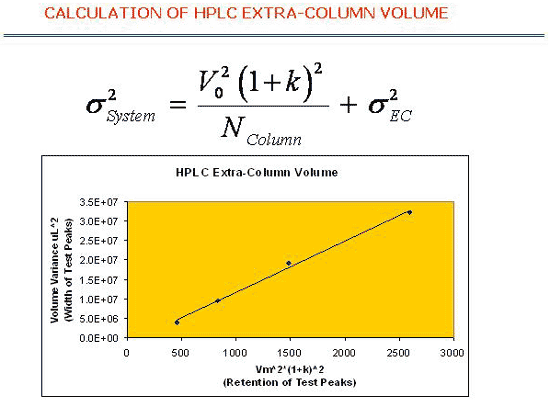

Calculation of Extra-Column Volume

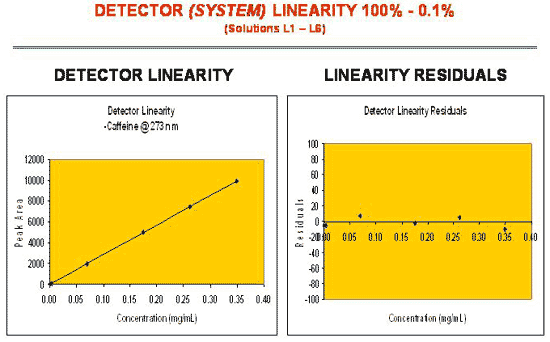

Detector Absorbance Linearity 100% - 0.1%

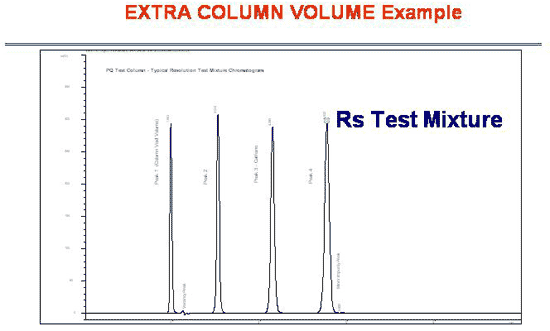

Extra Column Volume

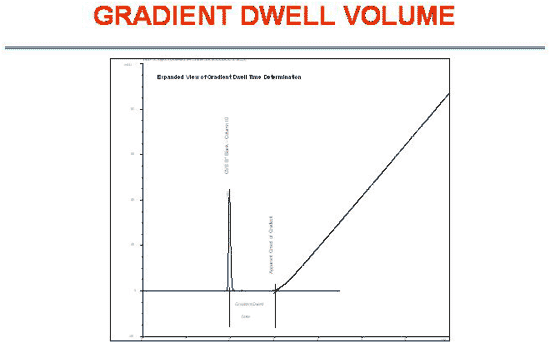

Gradient Dwell Volume

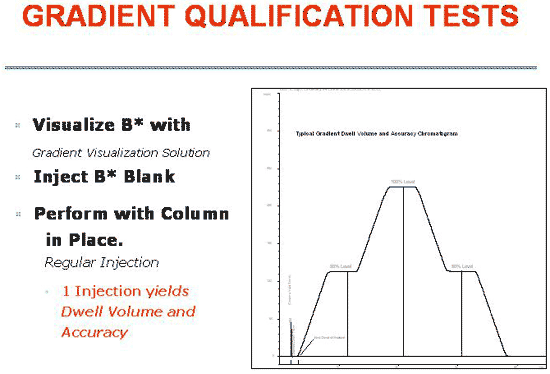

Gradient Qualification Tests

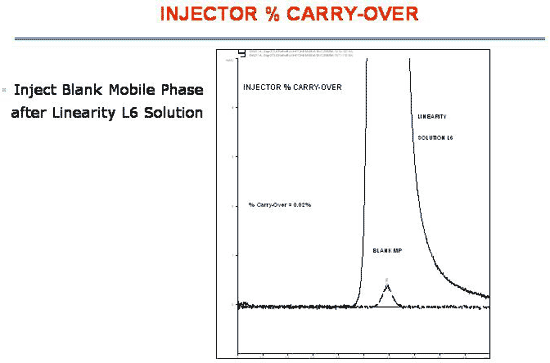

Injector Percent Carry-Over

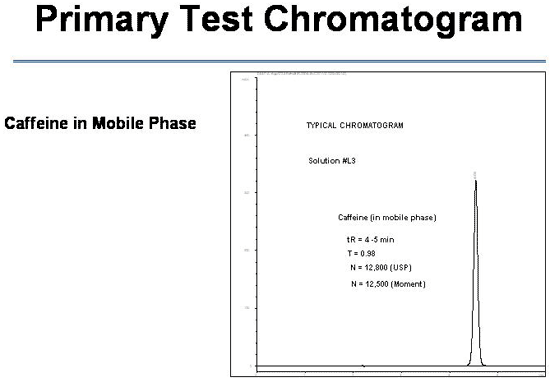

Primary Test Chromatogram

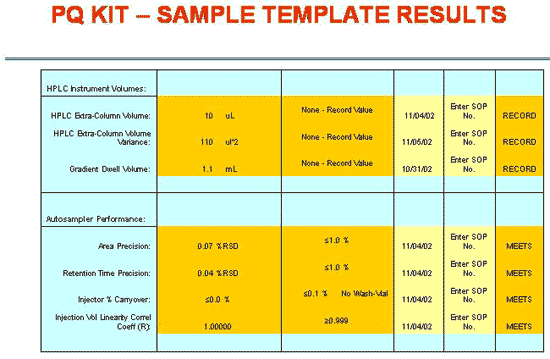

Sample Template Results

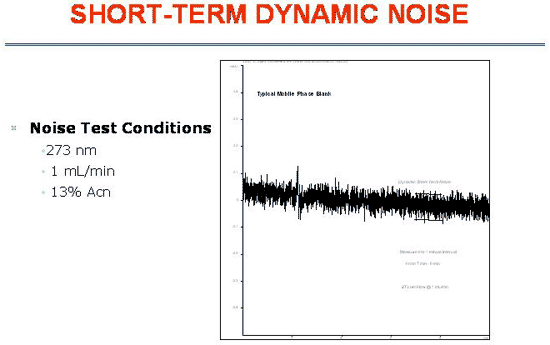

Short Term Dynamic Noise

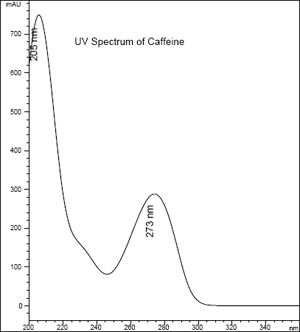

Spectrum of Caffeine in RTM

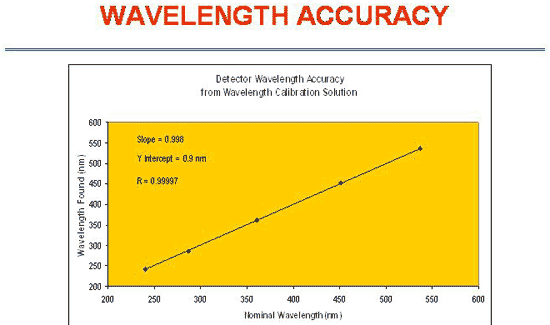

Wavelength Accuracy from
Calibration Standard
Wavelength Accuracy – Primary Standard

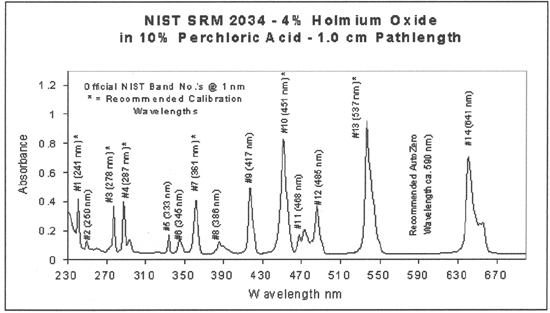

Spectrum of NIST SRM 2034 (lot95) using an HP 8453 spectrophotometer (bandwidth 1nm). Official values are rounded to nearest nanometer. The bands with a * are recommended for use as calibration bands for HPLC and or CE detectors.
Effect of Extra Column Volume on Your Results

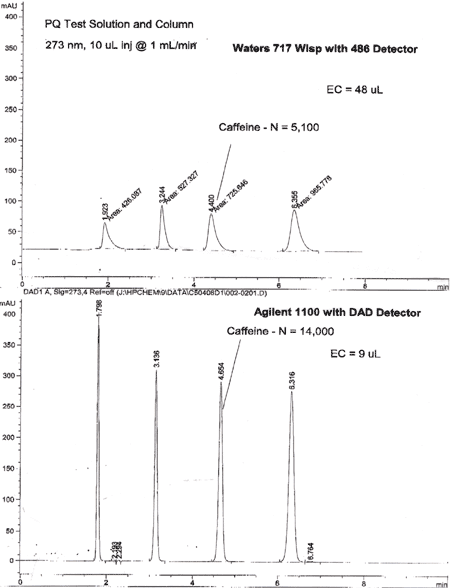

Below are two chromatogram examples of how two different instruments can produce very different results using the exact same conditions. They were both tested, using the exact same certified, HPLC Column, with the exact same NIST traceable standards on the exact same day. These differing results of an older and newer HPLC instrument may be simply they are plumbed quite differently.
Recommendation: Make sure all fittings are new, secure and that all tubing is well cut and as short as possible. Not all HPLC instruments offer optimal extra volume; check with your instrument manufacturer on how to optimize your system.
Hint! Use the MICROSOLV™ PQ Kit™ for determining system, extra column volume before transferring methods to different instruments, departments or clients.
